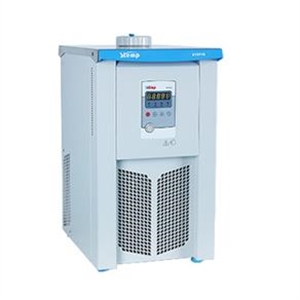

XT5718LT series refrigerated circulators
- Function introduction：
Patented stepper valve hot gas by-passing and dynamic temperature control for stability up to ± 0.1 °C, for continuous reliable operation
Available with cooling capacity for 400 W, 800 W, 1,200 W, 1,600 W and 2,000 W
Magnetic driven pump for quiet but powerful circulating, seamless liquid delivery and precise temperature control
1.Patented stepper valve hot gas by-passing and dynamic temperature control for stability
up to ± 0.1 °C, for continuous reliable operation
2.Available with cooling capacity for 400 W, 800 W, 1,200 W, 1,600 W and 2,000 W
3.Magnetic driven pump for quiet but powerful circulating, seamless liquid delivery and
precise temperature control
4.Optional for stepper valve driving, external Pt100 and RS232/485 interface for connection
to a refrigerating condensing unit, external circulating application system for continuous reliable
operation
5.Replacement for Julabo F250 & FL300 series , LAUDA Microcooler & WK, Huber Minichiller/
Unichiller, .Yamato CF and CLS series and PolyScience MM/LM/LS series
6.Specifications:
|
Models |
XT5718LT-E1200-R40 |
XT5718LT-E2000-R40 |
|
Temperature range@20℃ |
-40～+40 |
-40～+40 |
|
Temperature stability±℃ |
0.2～0.5 |
0.2～0.5 |
|
Cooling capacity@20℃W |
1200 |
2000 |
|
Pump pressure maxbar |
1.4 |
1.4 |
|
Pump flow-rate maxL/min |
25 |
25 |
|
Filling volume L |
5~10 |
5～10 |
|
Overall size mm |
460W×600D×825H |
500W×780D×1000H |
|
Protection against run-dry & spillage |
LLCO |
LLCO |
|
Models |
XT5718LT-E3000-R40 |
XT5718LT-E5000-R40 |
|
Temperature range@20℃ |
-40～+40 |
-40～+40 |
|
Temperature stability±℃ |
0.2～0.5 |
0.2～0.5 |
|
Cooling capacity@20℃W |
3000 |
5000 |
|
Pump pressure maxbar |
1.4 |
1.4 |
|
Pump flow-rate maxL/min |
25 |
25 |
|
Filling volume L |
5～10 |
5～10 |
|
Overall size mm |
600W×980D×1200H |
600W×1180D×1200H |
|
Protection against run-dry & spillage |
LLCO |
LLCO |
